BTO/BTR Series Industrial Mixers

Mounts

Open Tank

• Fixed plate mount
• Angle riser mount

Closed Tank

• ANSI flange mount
• Lip seal
• Low/standard pressure stuffing box
• Single or double mechanical seal, with lubrication system if required
• Custom flange connections available
• Separately mounted flange design available

Drives

Parallel Shaft Drive

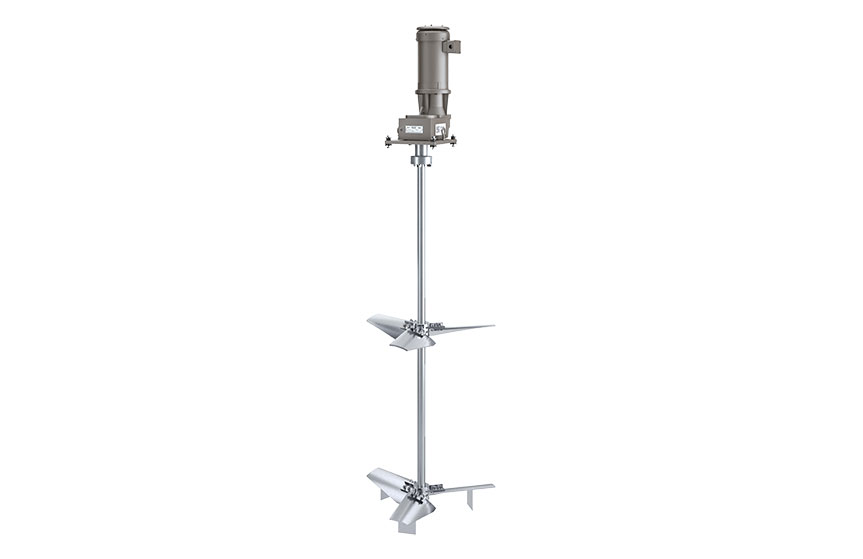

• Parallel output shaft (BTO Series)
• Various speeds available
• Meets all applicable AGMA and ASTM standards
• All-helical gear reduction for high torque and high efficiency
• Dry-well option available

Right Angle Shaft Drive

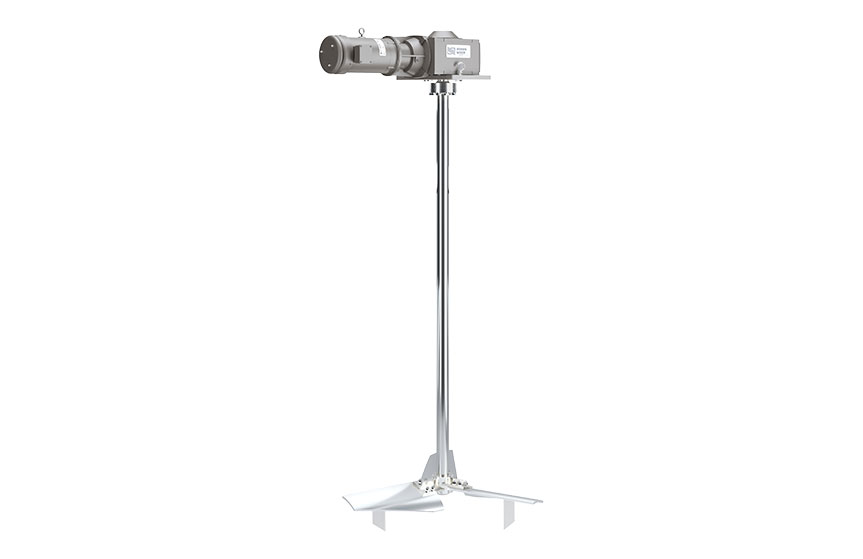

• Right angle output shaft (BTR Series)
• Various speeds available
• Meets all applicable AGMA and ASTM standards
• All-helical gear reduction for high torque and high efficiency
• Dry-well option available

Motors

Electric Motor

• IEC and DC motors are available upon request.
• IEEE 841
• Chemical duty
• Severe duty
• Explosion proof
• Single phase or three phase available
• Stainless steel
• 200+ HP configurations

Impellers

AF3 Hydrofoil

A35 Impeller

Custom

• Other impeller types available per application

Wetted Parts

• 304SS standard
• Carbon steel
• 316SS
• 316L
• AL6XN
• Alloy 20
• Hastelloy
• Duplex 2205
• Titanium GR2
• Other materials available upon request

• Polish options available
• Coating options available

Tanks

Tank designs are rarely considered with the mixer in mind. However, process effectiveness can be increased when both are done concurrently due to efficiencies gained from optimizing both the mixer and tank. Brawn Mixer can bring these design processes together with an in-house applications team that will develop the optimal tank and mixer solution, which delivers a process-ready unit directly to customer operations.

Engineered-to-Application Mixing Solutions

For validation in hygienic operations, additional documentation is required to establish quality and output capabilities. System integration and comprehensive control packages may be necessary for organizations with a high degree of process automation. In pilot and bench systems, the design needs to incorporate whole-line process operation thought for future scaling-up. In each case, Brawn Mixer has the expertise and in-house capabilities to address these requirements and develop a mixing solution engineered to your application.
